PRINCIPAL PARTICULARS

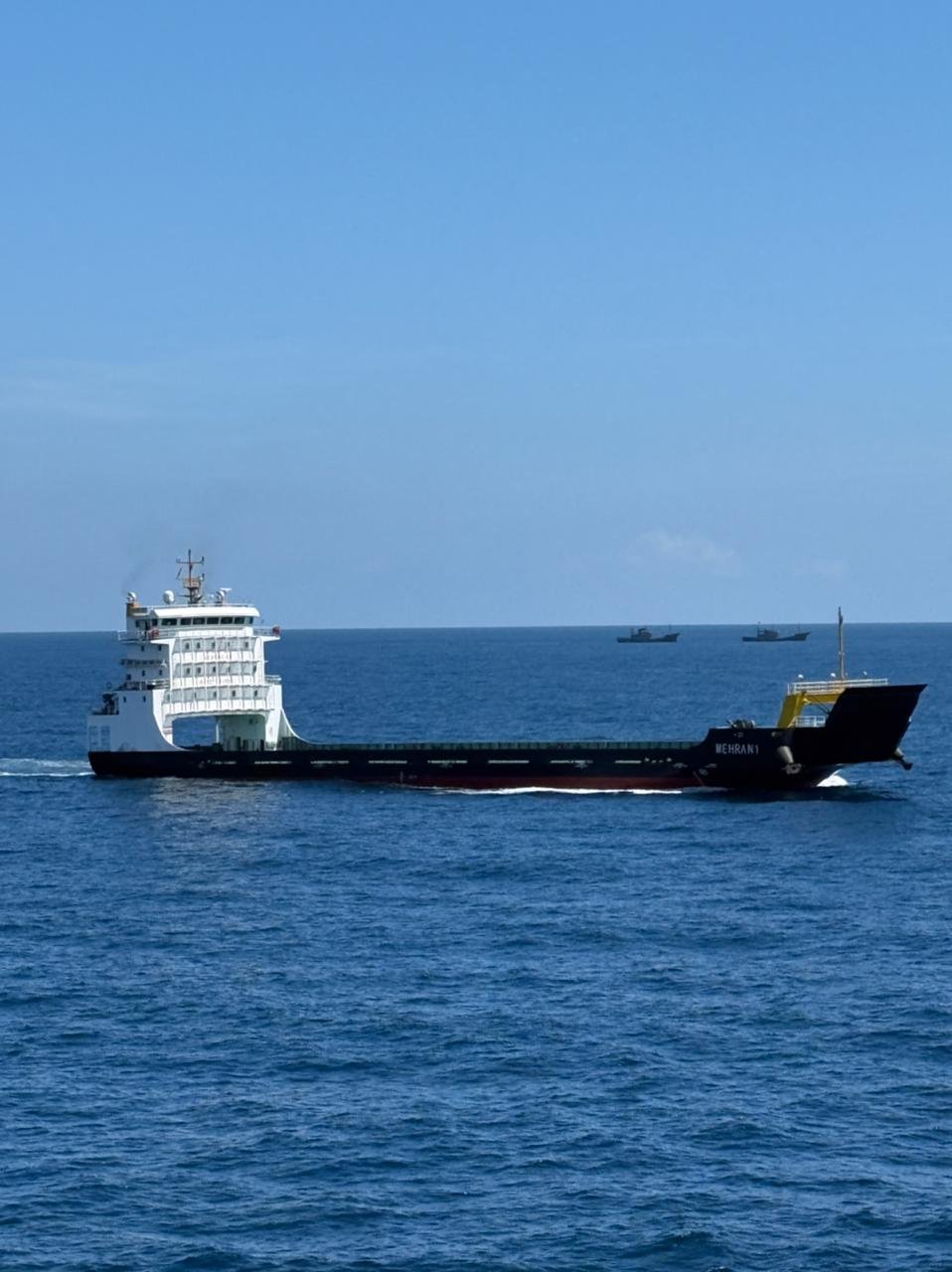

Name: MEHRAN 1
Ship’s Type: Landing Craft Vessel
Built: AUG. 2025
IMO No.: 1111117
Navigation Area: Sea-going
Class: CRS
Flag: SAINT KITTS and NEVIS

DIMENSIONS

• Length of O.A (with appendage): 94.2 m

• Length overall: 89 m

• Length W.L: 86.4 m

• Length B.P.P: 84.0 m

• Breadth: 18.5 m

• Depth: 4.8 m

• Design draft: 3.55 m

• Design displacement: 4814.5 t

• GRT: 2306

• NET: 691

• DWT: About 3454.5 t

• Container capacity: 228 (12×20′ + 108×40′ or 12×20′ + 108×45′), and there are 30 sockets for reefer container

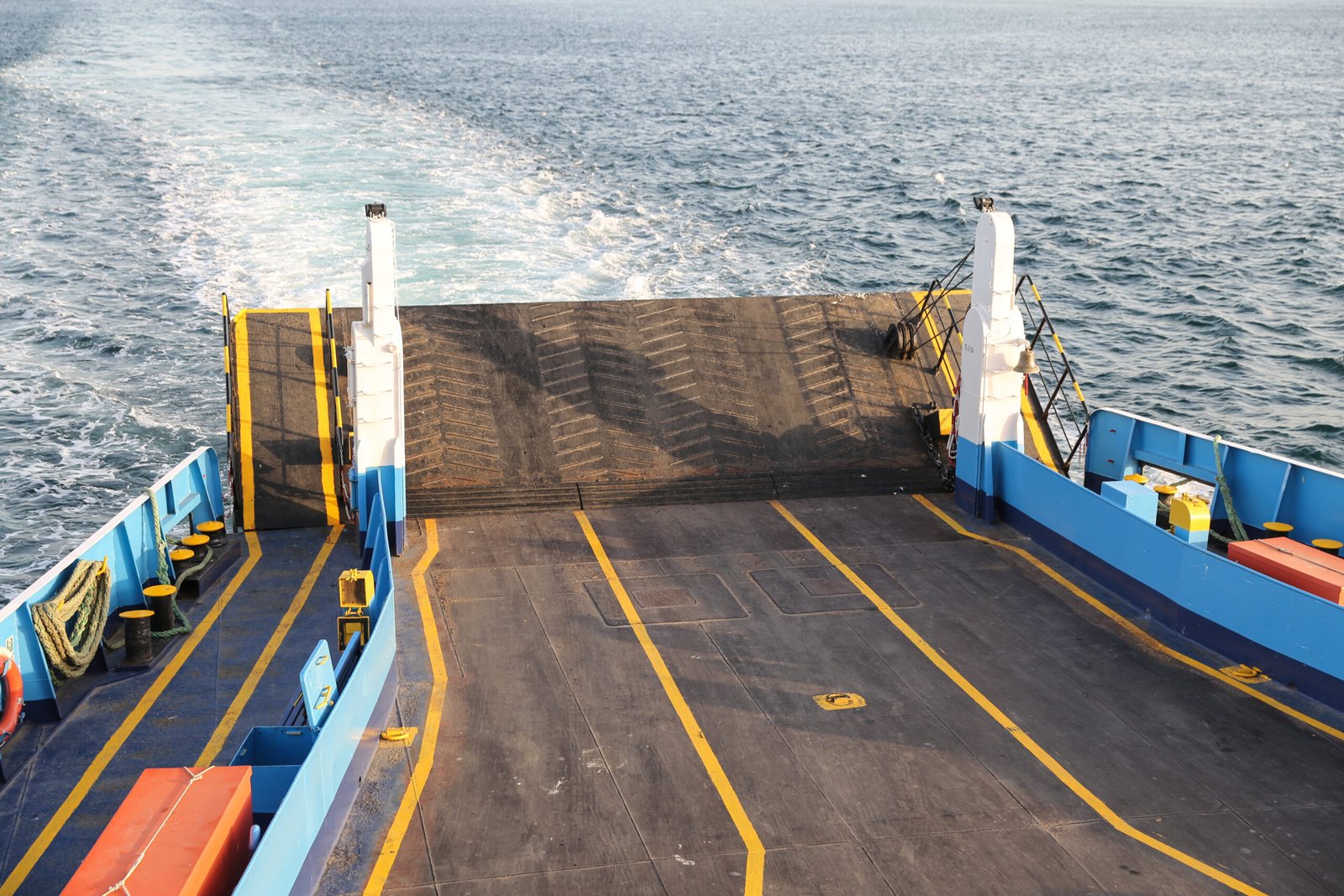

• Rampway (L×B): 8.0×12.0 m

• Loading area on deck: Weather deck

TANK CAPACITY

• Regulate Freshwater Tank: 1938.42 m³

• Ballast Water Capacity: 1012.2 m³

• Diesel Oil Capacity: 97.2 m³

• Fresh Water Capacity: 70.64 m³

• Lube Oil Capacity: 0.96 m³

• Dirty Oil Capacity: 3.09 m³

• Sewage Storage Tank: 24.6 m³

MACHINERY

• Main Engine: 2 units / ZICHAI / type: 6EY17W-1 / power: 2×1200 HP / 1500 r/min

• Gear Box: 2 units

• Generator: 3 sets / 3×90 kW / 400 V / 50 Hz

• Berth Generator: 1 set / 90 kW / 400 V / 50 Hz

• Emergency Generator: 1 set / 75 kW / 400 V / 50 Hz

• Propeller: 2 units of solid 4-blade manganese bronze propeller

• Bow Thruster: WST130-FP(Z), Power: 290 kW

• B.W. Operation System: TCB-2

• Fire Alarm Control Units: K1302B

• Manual Fire Call Points: J-SAP-M-M500K

• Sewage Treatment Unit: CBM-3, Capacity: 15P

• 15 PPM Bilge Separator: CCF-0.5

DECK EQUIPMENT

• Anchor: 2 units Speke anchor, weight 2×2.46t (bow), 1 unit Speke anchor, weight 1.2t (stern)

• Chain: 17 shackles, 42 mm dia.

• Hydraulic Windlass: YMA42 / Dia. 42 mm

• Electrical Hydraulic Windlass

• Hydraulic Warping Winch: YB50

• Electrical Hydraulic Steering: SYYD75

• Video Monitoring System and Loading Software on board

RADIO & NAVIGATION EQUIPMENT

• Radar: 2 units JMA-5312 / JRC

• Gyro Compass: NIL

• Satellite Compass: JLR-21 / JRC

• Magnetic Compass: 2 units CPT-165A, CPL-165

• GPS: 2 units HM-150-7, JLR-8400 / JRC

• AIS: JHC-183 / JRC

• Electronic Chart System: HM-5817 / XINNUO

• Echo Sounder: DS1068 / JUNLU

• Speed Log: DS-90 / JUNLU

• BNWAS: JHD01-BNW

• NAVTEX Receiver: NCR-333 / JRC

• MF/HF Radio Installation (SSAS): IC-800GMDSS / ICOM

• DSC/VHF Radio Telephone: 2 units IC-M600GMDSS / ICOM

• Inmarsat C: FELCOM-18 / FURUNO

• VDR: NIL

• Weather Facsimile Receiver: NIL

• Anemometer and Anemoscope: Have

• Autopilot: VSC30 / ZHONDIANGKE

• Public Address System: KG-1D

• Acoustic Force Telephone System: 12KS-1Q

ELECTRIC EQUIPMENT

• Main Switch Panel: PZJ9-6 90 kW×4

• Emergency Switch Panel: PYJ9-2 75 kW

• Control Console on Bridge: TJZ9-2

• Control Console in E.R.: TCZ9

LIFE SAVING & FIRE EQUIPMENT

• Life Boat: NIL

• Rescue Boat: HAVE

• Life Raft: 2 units CHF-A / Capacity: 15P

• Line Throwing Appliance: 4 units JHT-4

• Two-way VHF: 3 units CY-VH01 / CHIYANG

• Emergency Position-Indicating Radio Beacon: VEP8 / ZHONDIANGKE

• Search and Rescue Radar Transponder: 2 units CY-SART / CHIYANG

• CO₂ Fire Extinguishing Devices: CDE-68L

• Explosion-Proof VHF: 2 units KWD-2A

• Water Mist Fire Extinguishing System: HAVE

• International Shore Connection, Emergency Escape Breathing Device, Fire Air-Breather Apparatus, Fireman’s Outfit, Fire-Fighter’s Protective Clothing, Immersion Suits on board

CONSUMPTION

• Sailing empty: 4.0 MT per day (use MGO)

• Sailing loaded: 4.3 MT per day (use MGO)

• Berth: 0.3 MT per day (use MGO)

SPEED

• Design Speed: 11.0 kn

• Service Speed: 10.0 kn

ACCOMMODATION

• Total Berths: 14 persons

• All living spaces are fully air-conditioned
