TECHNICAL SPECIFICATIONS of ALI 26

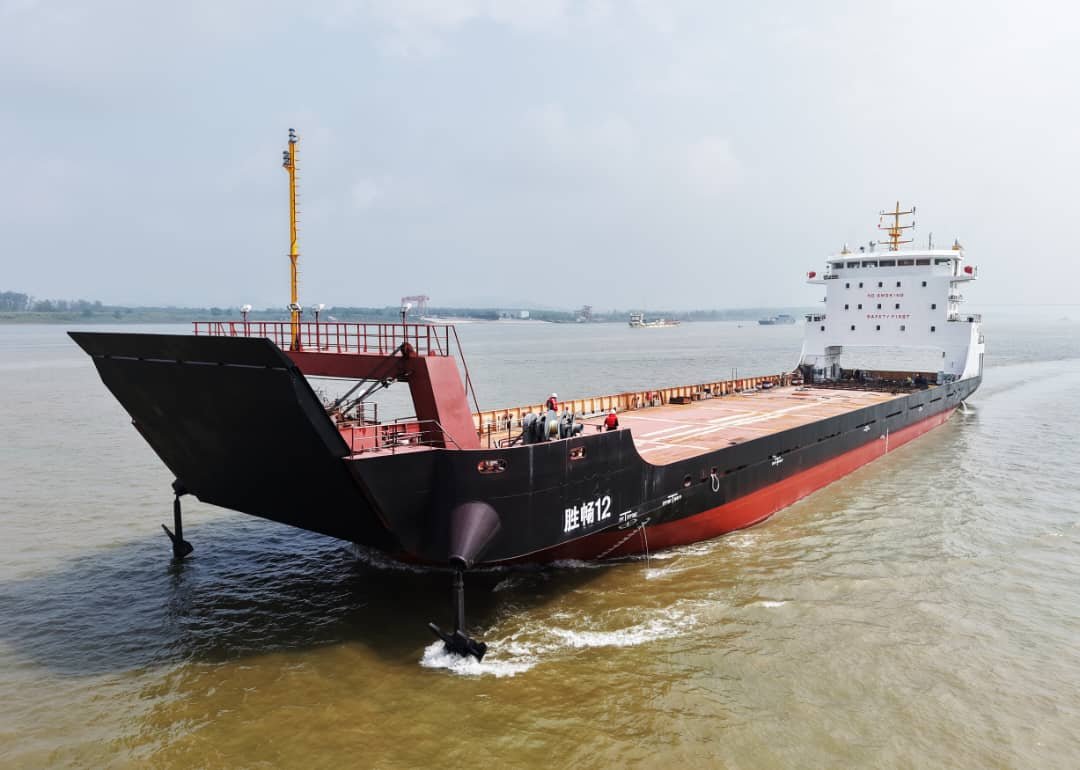

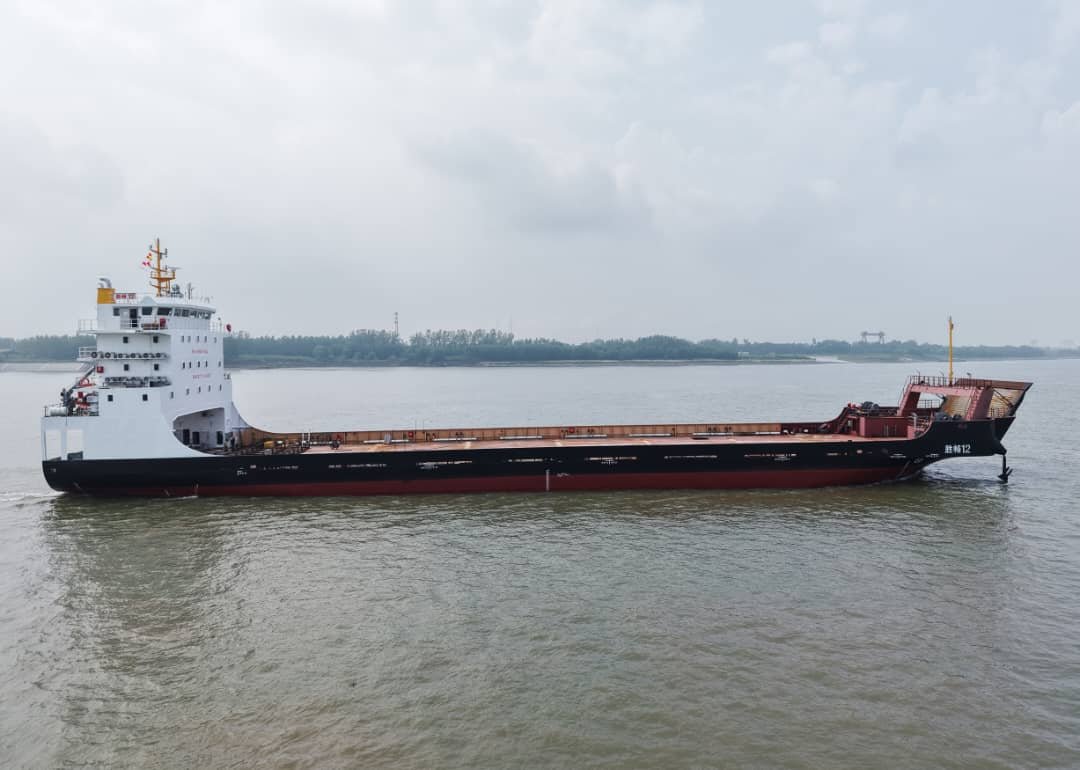

ALI 26 – Landing Craft Vessel
A reliable and heavy-duty sea-going landing craft vessel designed for cargo transport and marine operations with strong build quality, efficient performance, and modern navigation systems.
General Specifications
| Feature | Details |
|---|---|
| Vessel Name | ALI 26 |
| Type | Landing Craft Vessel |
| Built | August 2025 |
| IMO Number | 1111107 |
| Flag | Saint Kitts and Nevis |
| Navigation Area | Sea-Going |
| Class | CRS |
Principal Dimensions
| Specification | Measurement |
|---|---|
| Length Overall | 89 m |
| Breadth | 18.5 m |
| Depth | 4.8 m |
| Design Draft | 3.55 m |
| Deadweight (DWT) | ~3454.5 Tons |
| Gross Tonnage (GRT) | 2306 |
| Container Capacity | 228 TEU (supports 20’, 40’, and 45’ reefers) |
Main Machinery
Main Engines: 2 × ZICHAI 6EY17W-1 (2 × 1200 HP @ 1500 RPM)
Gearbox: 2 Units
Propellers: 2 × Solid Manganese Bronze, 4-Blade
Generators:
3 × 90 kW
1 × 90 kW Berth Generator
1 × 75 kW Emergency Generator
Tank Capacities
Fresh Water: 1938.42 m³
Ballast Water: 1012.2 m³
Diesel Oil: 97.2 m³
Sewage Storage: 24.6 m³
Performance
| Condition | Fuel Consumption | Speed |
|---|---|---|
| Sailing (Empty) | 4.5 MT/day (MGO) | 10–11 knots |
| Sailing (Loaded) | 4.6 MT/day (MGO) | 10–11 knots |
| Berth | 0.5 MT/day (MGO) | — |
Deck & Cargo Arrangements
Ramp Size: 8.0 m × 12.0 m
Deck Area: Suitable for containers, cargo, machinery, and vehicles
Anchoring System:
2 × Speke Anchors (2.46 tons each, Bow)
1 × Speke Anchor (1.2 ton, Stern)
Navigation & Communication Systems
Dual Radar (JRC JMA-5312)
Satellite & Magnetic Compasses
AIS (JRC JHC-183)
Echo Sounder
GPS Navigation Systems
Inmarsat C
VHF & MF/HF Radio Systems
Safety & Life-Saving Equipment
Life Rafts (2 × 15 Persons)
Rescue Boat
CO₂ Fire Suppression System
Bilge/ Sewage Treatment Systems
Emergency Radio Beacons and Fire-Fighting Gear
Why Choose Us
Selecting the right vessel is crucial for performance, reliability, and operational efficiency. The ALI 26 is engineered to deliver durability, capacity, and long-term value—making it a strong choice for commercial marine operations across diverse conditions.
- Heavy-Duty Marine Performance
- . High Cargo & Container Capacity
- Low Operating Costs
- Reliable Safety & Navigation Systems
