PRINCIPAL PARTICULARS

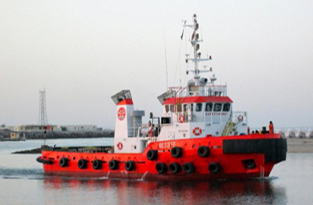

• Type of Ship: Ocean Going Twin Screw Tug

• Name: TUG NAHANG DARYA (EX BESSIE)

• Flag: Iran

• Official Number: 394414

• Call Sign: 9V7538

• IMO Number: 9522996

• Classification: ACS (Asia Classification Society)
  / ABS Maltese Cross A1, AMS Circle E – Towing Service for Unrestricted Navigation

• Operating Areas: Sea Areas 1, 2 & 3

• Year Built: 2009

• Place Built: Wuhu Dajiang Shipbuilding, China

DIMENSIONS AND TONNAGE

PROPULSION AND PERFORMANCE

• Main Engines: 2 × CATERPILLAR CAT3512B (1,600 HP @ 1,600 RPM each / Total 3,200 HP)

• Gear Box: 2 × REINTJES WAF 665 (Ratio 5.571:1)

• Generators / Alternators: 2 × CUMMINS 6CT8.3-D(M) with UCM274E STAMFORD (99 kW / 123.75 KVA)

• Propellers: 2 × Solid 4-Blade Manganese Bronze with Mild Steel Kort Nozzle

• Maximum Speed: 11 Knots

• Economical Speed: 9 Knots

• Bollard Pull: 40 Metric Tons

CAPACITIES AND MACHINERY

• Fuel Oil: Approx. 250.00 m³

• Fresh Water: Approx. 40.00 m³

• Dirty Oil Tank: Approx. 3.80 m³

• Fuel Oil Purifier: KYDR203CD-23 (2.2 kW / 380V / 50Hz)

• Oily Water Separator: USH-05 (0.5 m³/h)

TOWING AND DECK EQUIPMENT

• Stern Tubes & Shafting: 2 × Oil-Lubricated Stainless Steel (AISI 316) Tail Shafts

• Steering Gear System: 2 × JAMSTRAM Type Twin S2-15-1-35 (1.5 TM per rudder / 35° each side)

• Towing Hook: 50T SWL, Remote Quick Release Control

• Towing Winch: 1 × ME40THTW Electro Hydraulic (Static Brake Hold 100 MT, 700 m × 44 mm Galvanized Wire Rope)

• Anchor Windlass: 1 × ME2.1THWL 3-T Electric Hydraulic with Two Warping Drums (Speed: 12 m/min)

• Bow Anchors: 2 × Stockless (each 480 kg)

• Chain Cable: 302.5 m total, 22 mm dia., Grade 2

NAVIGATION AND SAFETY EQUIPMENT

• VHF Radiotelephone: ICOM IC-M504

• SSB Transceiver: ICOM M710 / ATU130

• Marine Radar: FURUNO 1832

• GPS Navigator: FURUNO GP 150

• Echo Sounder: FUSO FEC 609

• NAVTEX Receiver: McMurdo NAV-7

• Weather Fax: FURUNO FX 408

• Magnetic Compass: SAURA KEIKI MR-150A

• EPIRB: McMurdo SmartFind E5

• AIS: FURUNO FA-150

• Auto Pilot: FURUNO NAVPILOT 500

FIRE FIGHTING AND LIFE-SAVING APPLIANCES

• Liferafts: 2 × HNF-A15(96) (15 Persons each)

• Lifejackets: 17 pcs

• Fire Extinguishers: 9 × 9 kg ABC Dry Powder, 1 × 45-litre Trolley Foam

• Additional Safety Equipment:

  • 2 × Fireman’s Outfits

  • 2 × Breathing Apparatus

  • Emergency Fire Pump and Standard Safety Gear
